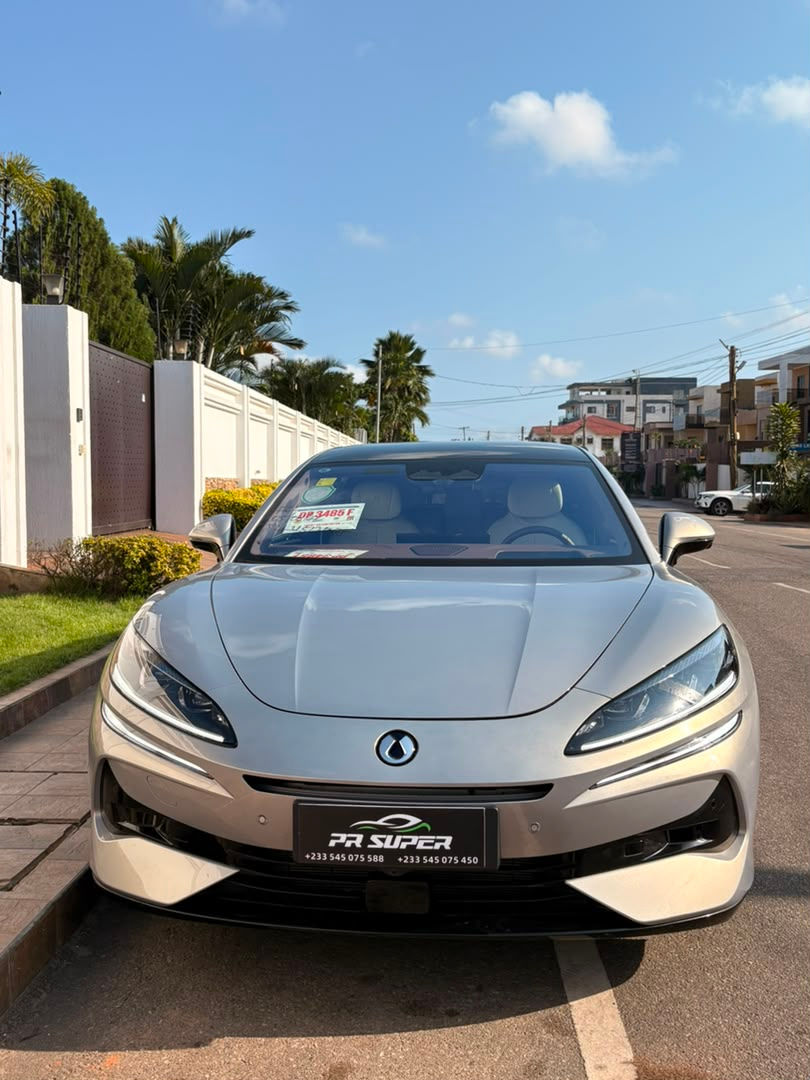

Denza Z9GT 2024 model

Denza Z9 GT DM-i 1100 4WD Max Edition

Range‑Extended EV 2024Model

I. Original Vehicle Data

* Manufacturer: BYD Auto Industry Co., Ltd.

* Brand: Denza

* Country of Manufacture: China

* Vehicle Model: QCJ7200AEHEV1

* Manufacturing Date: September 2024

* Seating Capacity: 5 seats

* Engine Model: BYD479ZQA

* Engine Displacement: 1995mL (2.0T range-extended engine)

* Maximum Net Engine Power: 150kW

* Drive Motor Model: TZ210XYD / TZ220XYAV + TZ220XYAV

* Peak Drive Motor Power: 200kW + 220kW + 220kW (Three-motor 4WD)

* Rated Battery System Voltage: 531.2V

* * Rated battery capacity: 72.5Ah

* Maximum permissible gross weight: 3115kg

* VIN: LC0DD4C46R7099428

II. Vehicle Dimensions

* Length x Width x Height: 5235mm × 1990mm × 1500mm

* Wheelbase: 3125mm (Extra-long wheelbase, spacious rear seating)

* Front track: 1710mm, Rear track: 1715mm

* Body structure: 4-door 5-seat luxury sedan

* Curb weight: 2740kg

III. Powertrain & Battery Performance Parameters

1. Range Extender Engine (2.0T) Displacement 1995ml, maximum net power 150kW, only responsible for generating electricity, does not directly drive the wheels, belongs to the range extender electric vehicle (EREV) category.

2. Three-Motor Four-Wheel Drive System: Front motor 200kW, dual rear motors each 220kW; system combined peak power 640kW, 0-100km/h acceleration in under 3 seconds, all-wheel drive.

3. Battery: Blade battery, rated voltage 531.2V, capacity 72.5Ah; CLTC combined range 1100km+, pure electric range around 200km; can be used with either gasoline or electric power, eliminating range anxiety.

4. Top Speed: 240km/h; low fuel consumption even when the battery is depleted.

IV. Core Hardware and Functions

1. YiSanFang Three-Motor Four-Wheel Drive Chassis: Three independent motors provide independent torque control for all four wheels, supporting crab mode, compass turn (small radius turning on the spot), tire blowout stability control, providing excellent stability on wet and slippery roads.

2. Air Suspension + CDC Electromagnetic Damping: Height adjustable, real-time stiffness adjustment, balancing handling and luxurious comfort.

3. Safety Features: 93% high-strength steel and aluminum alloy body, standard 10 airbags, blade battery-based vehicle safety architecture.

4. Intelligent Cockpit: Large multi-screen display, advanced intelligent driving assistance, luxurious rear executive seats, multi-zone climate control, seat ventilation/heating/massage.

5. Charging: Supports fast charging and external power dissipation.
