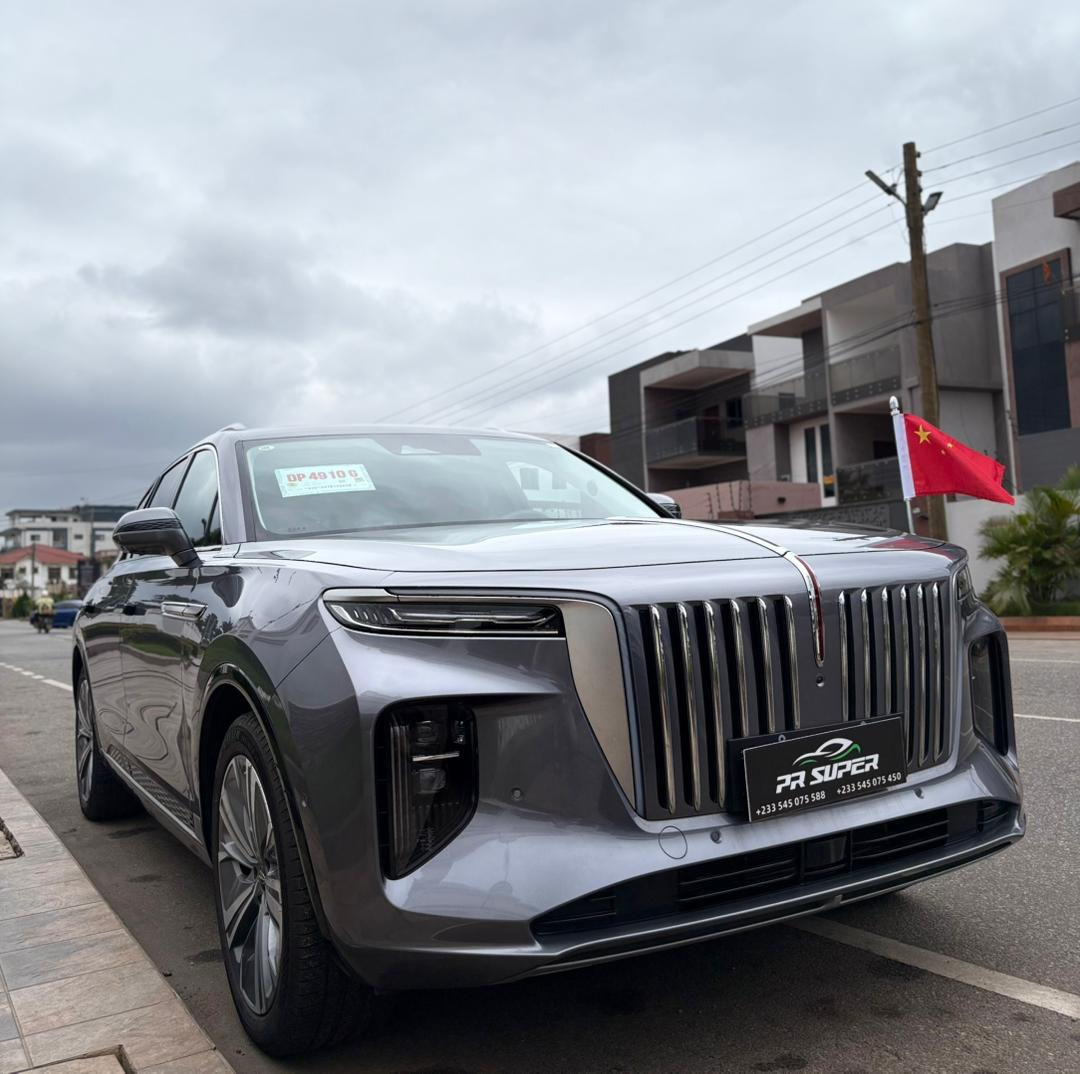

HONG QI 2023 model

HONGQI E‑HS9

2023model All electric

6-seater flagship heavy-duty SUV

(CA6520H0EVXM) complete set of parameters

Manufacturing country: China

Manufacturer's name: China FAW Group Co., Ltd.

Vehicle identification number VIN: LFB1FV693P2L07379

Brand: Hongqi

Vehicle model: CA6520H0EVXM

Number of passengers: 6 people

Year of manufacture: 2023‑03

Maximum allowed total mass: 3247kg

Drive motor model: CAM220PT2, CAM250PT1

Motor peak power: front motor 160kW, rear motor 245kW

Rated voltage of power battery system: 401V

Rated capacity of power battery system: 298Ah

Battery type: ternary lithium-ion battery

📐Body size, weight, and chassis announcement parameters

• Overall vehicle exterior dimensions: 5209mm × 2010mm × 1713mm (length × width × height)

• Wheelbase: 3110mm

• Curb weight: 2702kg

• Maximum allowed total mass: 3247kg

• Number of axles: 2; axle load: 1388kg / 1859kg

• Tire size: 265/45 R21 21-inch wheels

• Maximum speed: 200km/h

• Seat layout: 6 seats, 2+2+2 three rows of independent seats

• Body type: full-size large pure electric SUV, pure electric multi-purpose passenger vehicle

⚡Motor power performance

• Motor type: front and rear dual permanent magnet synchronous motors

• Front motor peak value: 160kW, peak torque 300N·m

• Rear motor peak value: 245kW, peak torque 450N·m

• Combined total peak power: 405kW (551 hp)

• Comprehensive total peak torque: 750N·m

• Drive form: dual-motor intelligent four-wheel drive (AWD)

• 0‑100km/h acceleration: approximately 4.8 seconds

🔋Battery and charging parameters

• Battery: ternary lithium battery

• Rated voltage 401V, rated capacity 298Ah; calculated total power ≈ 119.5kWh

• Official cruising range: 660km

• Maximum DC fast charging support: 135kW DC fast charging

• AC slow charging: supports 11kW vehicle charger

• Zero emissions, pure electric, no fuel system
